⚠ ADVICE ⚠: For USB Type-C try to fix with USBToolBox and for fix Thunderbolt follow these: guide1 and guide2.
Motherboards comparison (WARNING: Latest BIOS firmwares with 0B00002A microcode doesn't POST with Broadwell-EP processors)

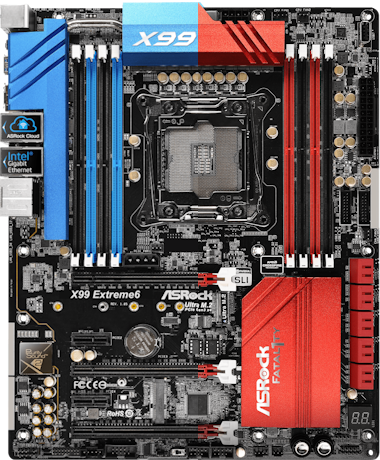

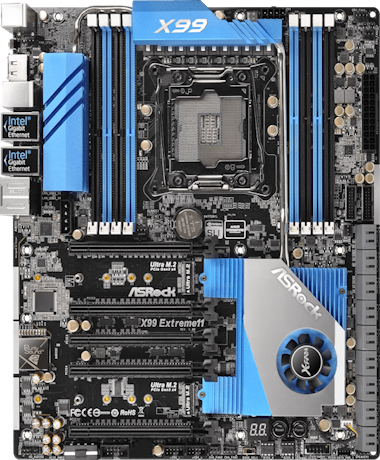

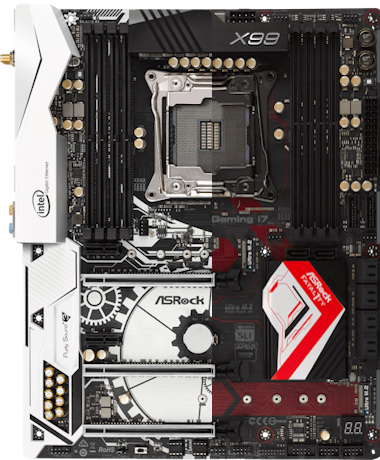

| Hardware | Extreme4 | Extreme11 | Extreme6/Fatal1ty X99X Killer | Taichi/Fatal1ty Professional Gaming i7 |
|---|---|---|---|---|
| Motherboard |  |
 |
 |
 |
 |
Aptio's V v3.60 or v3.81 for Haswell and Broadwell (by American Megatrends (AMI/AsRock) | Aptio's V v3.40 (by American Megatrends (AMI/AsRock) | Aptio's V v3.30 for Haswell and Broadwell (by American Megatrends (AMI/AsRock) | Aptio's V v1.80 (by American Megatrends (AMI/AsRock) |
 |
Intel Xeon (5th Gen) E5-2640v4 10 Cores/20 Threads@2,4Ghz | Intel Xeon (5th Gen) E5-2630v4 10 Cores/20 Threads@2,2Ghz | Intel Xeon (5th Gen) E5-2690v4 14 Cores/28 Threads@2,6Ghz | Intel Xeon (5th Gen) E5-2690v4 12 Cores/24 Threads@2,2Ghz |
 |
Sapphire Radeon RX 580 Nitro+ 8GB VRAM | Gigabyte RX 570 Gaming 4GB VRAM | XFX Radeon RX 5700XT Thicc III Ultra 8GB VRAM | Sapphire Radeon RX 5600 Pulse 6GB VRAM |
 |
ALC1150 Purity Sound 2 | Idem | Idem | ALC1150 Purity/Creative Sound 3 |
| Ethernet | Intel I218V | Intel I218V (main) and Intel I211AT (2nd) | Intel I218V (main) and Qualcomm Atheros AR8171 (2nd) | Intel I218V (main) and Intel I211AT (2nd) |
 |
N/A (I'm using an Intel AC-7260NGW) | N/A | Add a Intel Wireless card (I'm using an Intel AC-7265NGW) | Add AirportItlwm for Monterey or Ventura / Itlwm for BigSur, Sonoma or Sequoia?) |
 |
Corsair ValueSelect 32GB(4x8GB) DDR4@2133Mhz | Corsair ValueSelect 32GB(4x8GB) DDR4@2133Mhz | Corsair ValueSelect 32GB(4x8GB) DDR4@2133Mhz | G.Skill Aegis 64GB(8x8GB) DDR4@2400Mhz |
 |
Kingston A400 240GB (TLC PS3111 Controller, testing drive) | Idem | Idem | Idem |
 |
Kioxia Exceria Pro 1TB SSD Nvme (TLC PS5018 Controller) | Idem | Idem | Idem |
| USB Ports | 4 USB 2.0 (rear)/2 USB 2.0 connectors (frontal), 4 USB 3.1 (rear)/1 USB 3.1 connector (frontal); OSX is limited to 11 USB Inputs | 4 USB 2.0 (rear)/2 USB 2.0 connectors (frontal), 4 USB 3.1 (rear)/2 USB 3.1 connectors (frontal); OSX is limited to 11 USB Inputs | 2 USB 2.0 (rear)/2 USB 2.0 connectors (frontal)/1 USB 2.0 connector (internal), 6 USB 3.1 (rear)/2 USB 3.1 connectors (frontal); OSX is limited to 11 USB Inputs | 3 USB 2.0 (rear)/2 USB 2.0 connectors (frontal), 4 USB 3.1 (rear)/1 USB 3.1 connector (frontal), 1 USB Type-C 3.1 (rear); OSX is limited to 11 USB Inputs |
I'm bringing another OpenCore EFI, now for these X99 motherboards, for more information, click on "More info of MacOS Version below:
More info of MacOS Monterey:
Status: Done ✅ (test with Release EFI )🖥
More info of MacOS Ventura:
Status: Done ✅ (test with Release EFI )🖥
More info of MacOS Sonoma:
Status: Done ✅ (test with Release EFI )🖥
More info of MacOS Sequoia:
Status: In plaining 👷♂️
More info of MacOS Tahoe:
Status: Done ✅ (test with Release EFI )🖥
