Summary
The #623 print-heading frame closes every page's bottom edge only where a band source
exists at the break. On Typst-flowed intermediate pages the bottom rule across the data
area comes from the #622 gridline closure seeds, but the row-number gutter's span has no
seed there — its bottom band is emitted only on the last row of the table (or at
parser-level breaks). GT closes the frame across the full width, gutter included, on every
page. With gridlines off, the entire intermediate-page bottom edge would be unframed.
The mechanism is documented in resolve_boundary_painted_borders
(crates/office2pdf/src/render/typst_gen_tables.rs): codegen cannot see Typst-chosen page
breaks, so per-page bottom frames exist only where a per-row band (gridline seed or last-row
frame band) happens to coincide with the break.
Measured (NumberFormatTests.xlsx, Tests sheet, intermediate pages)
|
GT (Excel, every page) |
office2pdf (Typst-flowed pages) |
| bottom frame across gutter span [54,77] |
present, 1pt black |
absent |
| bottom rule across data span |
present |
present (gridline seeds) |
| last page bottom frame |
present, full width |
present, full width |
Reproduction
cargo run -p office2pdf-cli -- tests/fixtures/xlsx/poi/NumberFormatTests.xlsx -o out.pdf
mutool draw -F trace -o - out.pdf 3 | grep stroke # bottom edge: data span ruled, gutter span open
Expected
Every printed page's bottom edge is framed across the full block width — heading gutter
included — as Excel prints it.
Actual
Intermediate Typst-flowed pages leave the gutter's 23pt bottom span open (and would leave
the whole bottom open with gridlines off); only the final page and parser-level breaks get
the full frame.
Related: #623
Found in: the #623 fix-PR visual audit (local Excel-for-Mac GT, 150 DPI, 2026-07-30). Visual comparison below.
Visual comparison
| Compare |
 |

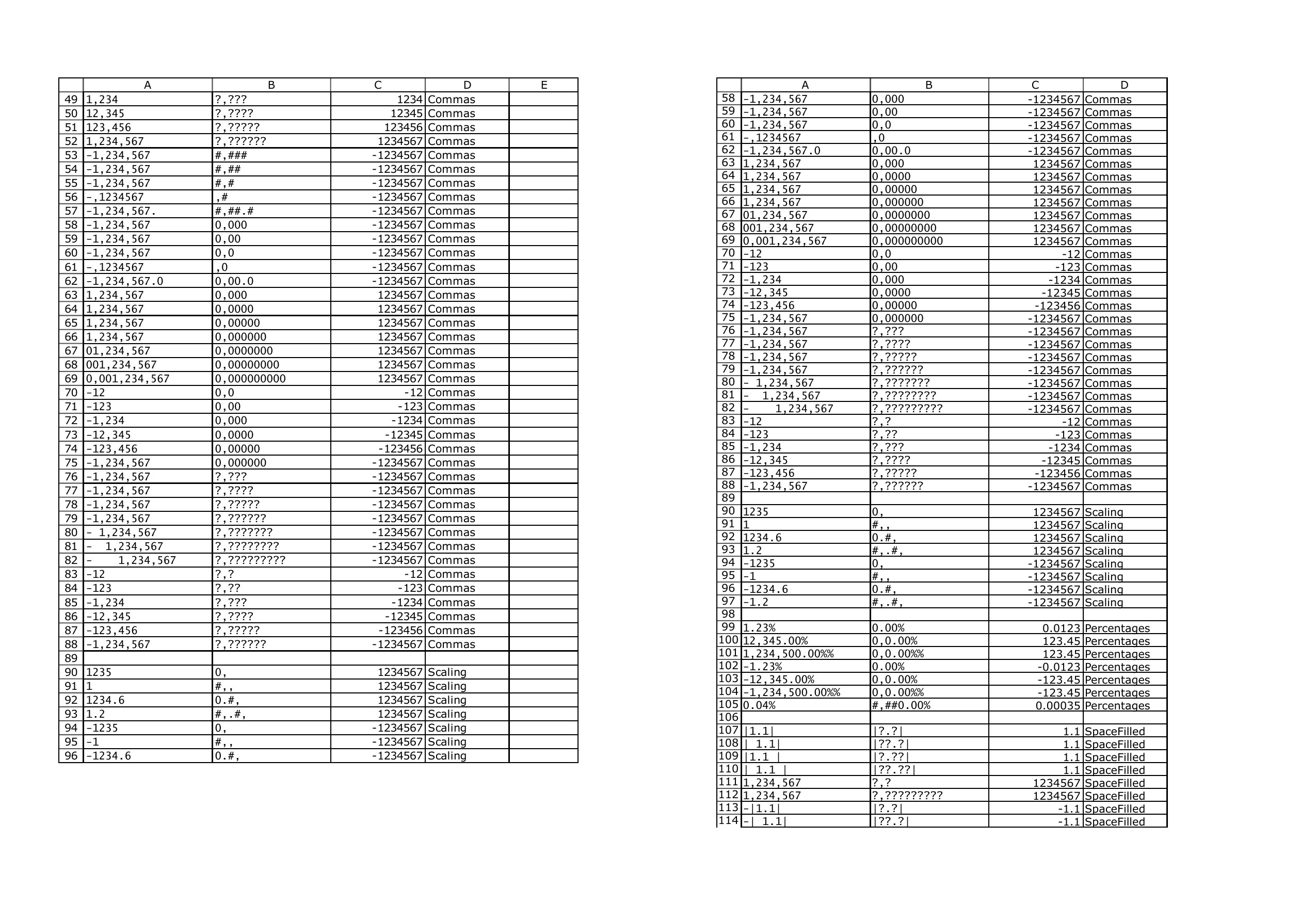

GT (intermediate page, frame closed) left, office2pdf (intermediate page, gutter bottom span open) right, 150 DPI.
