XLSX: vertical="bottom" cells leave their slack below the text, so bottom-aligned runs sit up to 12pt high

[developer0hye]

Summary

bottom is OOXML's default cell vertical alignment, and <alignment vertical="bottom"/>
is also set explicitly on the title and numeric cells of most audit workbooks. Excel puts
the descender bottom of the last line on the row's bottom edge. office2pdf instead leaves
the row's slack below the text — the line box behaves as if it were centred, or as if an
oversized descent were reserved under it — so bottom-aligned text sits high by an amount
that scales with (rowHeight − lineHeight).

Cells that ask for vertical="center" land correctly in every file checked, which isolates
the fault to the bottom-alignment path rather than to the line model in general.

Measured

case	GT (Excel)	office2pdf	delta
03_inventory_en p1, merged A1 title (Arial Bold 14 in a 23pt row)	baseline 92.00pt	88.33pt	3.67pt high
05_project_schedule_en / 06_sales_dashboard_en p1, merged A1 title	baseline 92.00pt	88.33pt	3.67pt high
09_expense_report_en / 10_kpi_tracker_en p1, title A1	baseline 92.00pt	88.33pt	3.67pt high
02_financial_model_en p1, row-1 title, ink bottom @150 DPI	y = 197 px	y = 189 px	3.8pt high
04_payroll_ko p1, row 9 (합계): label vs numbers	both on baseline 218.00pt	numbers 243.54pt, label 246.69pt	3.15pt split
WidthsAndHeights p1, B1 beside a two-line wrapped A1 (ht="37.5" customHeight="1")	bottom y ≈ 87.1pt	75.1pt	12.0pt high

GT's baselines are exactly what bottom alignment predicts: rowBottom − descent
(Arial 14pt descent 0.212 em = 2.97pt → 95 − 2.97 = 92.03; Malgun Gothic 14pt descent
4.06pt → 90.94).

The 04_payroll_ko total row is the sharpest case because it removes row height as a
variable: that row measures 14.00pt in both GT and output, yet the vertical="center"
merged label (xf7) ends up 3.15pt below the vertical="bottom" numbers (xf5/6/8) in the
same row. A centred cell cannot legitimately sit lower than a bottom-aligned one.

Reproduction

cargo run -p office2pdf-cli -- tests/golden_mocks/business/sources/xlsx/03_inventory_en.xlsx -o out.pdf
mutool draw -F trace -o - out.pdf 1 | grep -i 'Warehouse Inventory'   # baseline 88.33, Excel 92.00

cargo run -p office2pdf-cli -- tests/fixtures/xlsx/poi/WidthsAndHeights.xlsx -o wh.pdf

Expected

A vertical="bottom" cell places its last line so the font's descent bottom rests on the
row's bottom inset edge, leaving all the slack above the text.

Actual

The slack is split (or left below the text), so the run sits 3.7-3.8pt high on a 14pt
heading, splits baselines by 3.15pt when a row mixes CJK and Latin cells, and reaches 12pt
when a row mixes wrapped and unwrapped cells.

Related: #298

Found in the 2026-07-29 full-corpus visual audit at c1adfbd (native Office GT, 150 DPI, mutool-trace geometry).

Visual comparison

Compare

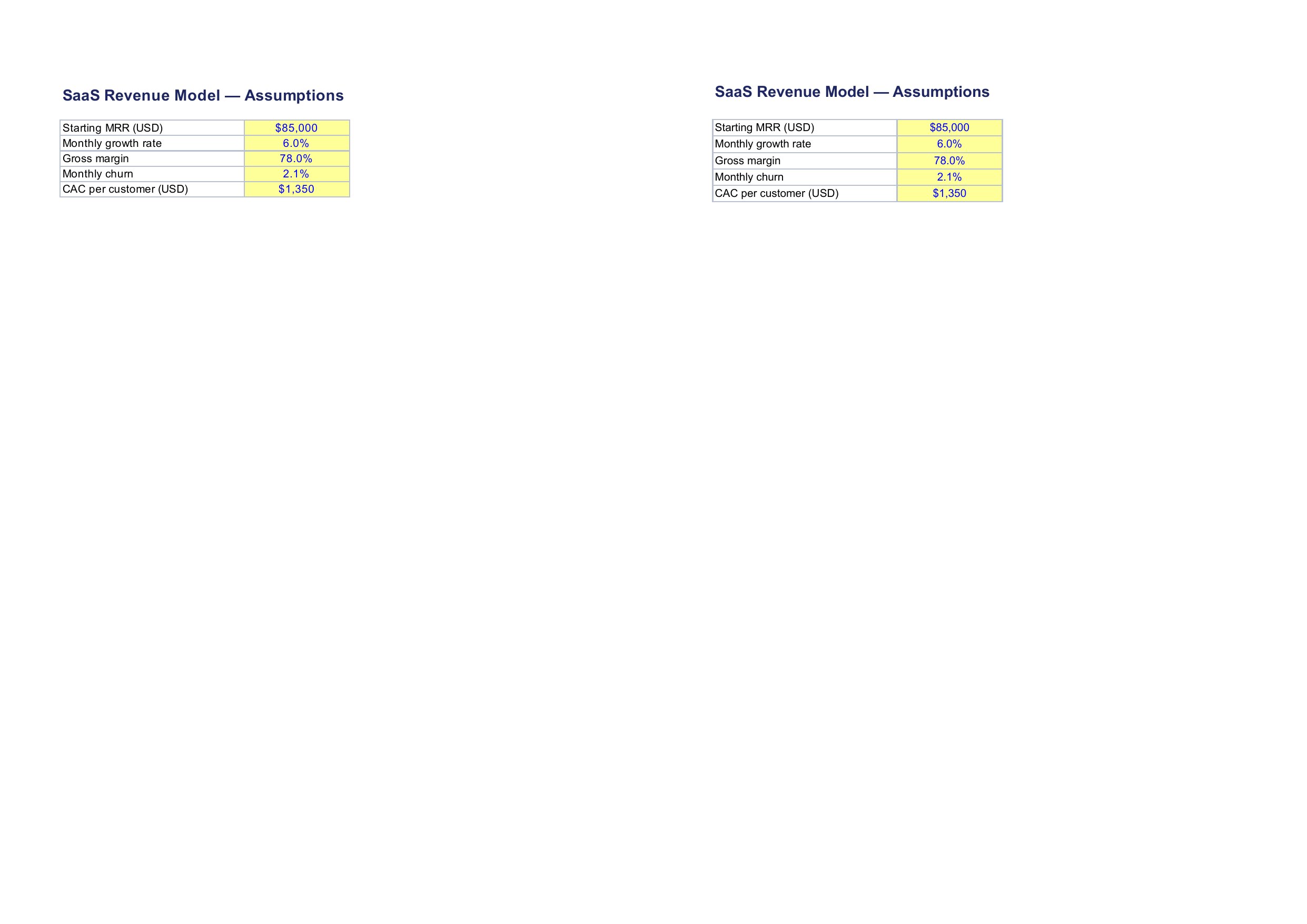

GT left, office2pdf right, 150 DPI, same page.

[developer0hye]

Fixed by #711. Bottom-aligned XLSX cell text now seats its descent bottom on the row's bottom inset edge in fixed-height rows: the spill wrapper anchors at the cell's effective vertical alignment with a metrics-sized strut, and East Asian rows re-seat the line box at the real descender with the 1.3× surplus moved into leading (multi-line advance unchanged).

Measured after the fix (mutool trace): 03_inventory_en title baseline 88.33 → 90.53 (GT 92.00 — the 1.47pt residual is the row-1 track, #658); WidthsAndHeights B1 75.01 → 84.55 (residual #658); 04_payroll_ko row-9 numbers 243.54 → 245.54, shrinking the bottom-above-centre inversion from 3.14pt to 1.15pt (residual #709).

Fresh GT comparison confirms the seating defect gone; every remaining deviation on the audited page has its own open issue: #709 (EA auto-row 1.3× line factor), #710 (Latin auto rows +1pt), #658 (customHeight track mapping), #655 (dataBar height), #619 (border placement).
